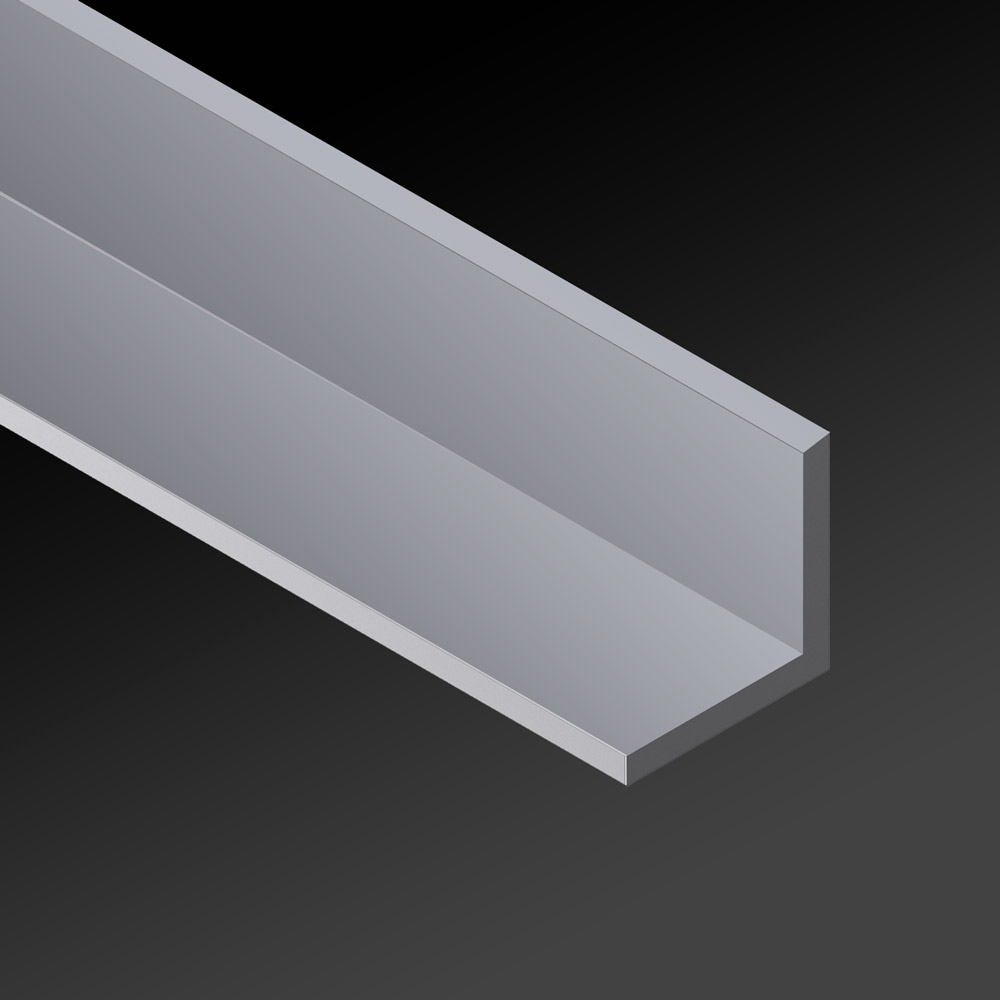

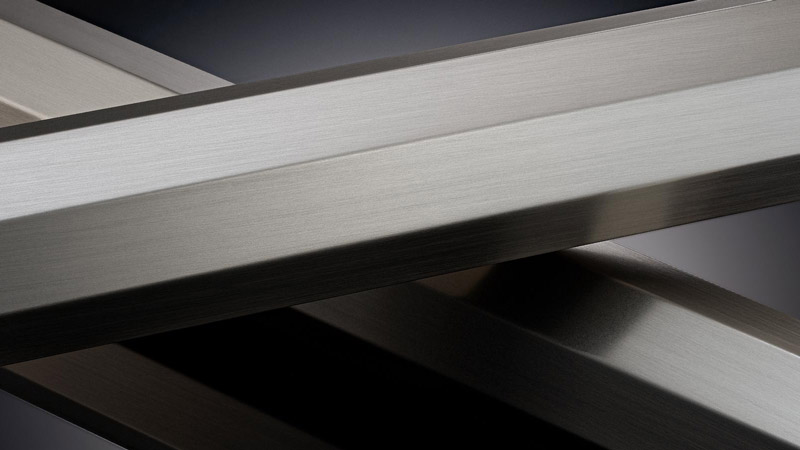

Aluminum angle isosceles


Aluwinkel gleichschenklig – Wiotec Oberflächentechnik - Profile und Griffleisten erhalten Sie in verschiedenen Längen ab Lager in den Oberflächen glanzverchromt, edelstahlfarbig eloxiert und naturfarben eloxiert

The angles are not only very versatile in the processing industry. There are also a variety of applications in the store area as well as the construction and furniture industry. The angles are very well suited for the decorative area in store construction, as decorative end strips and facings.

Their processing is easy and simple, the application possibilities are therefore large. The profiles can be processed on site (sawing, drilling, etc.).

The resistance can be achieved by various surface finishes or increased by multi-layer systems. We supply the aluminum angles plain untreated or also chrome-plated as well as in stainless steel optics, gold-plated, anodized and much more.

The angles are available in different dimensions. On request, larger quantities are also possible without any problems. For questions and suggestions we are at your disposal.

Your benefits


Standard dimensions in stock 24h available
Lorem ipsum dolor sit amet, sapien platea morbi dolor lacus nunc, nunc ullamcorper. Felis aliquet egestas vitae, nibh ante quis quis dolor sed mauris. Erat lectus sem ut lobortis, adipiscing ligula eleifend, sodales fringilla mattis dui nullam. Ac massa aliquet.

No merchandise (exception for special sizes and small purchase quantities)
Lorem ipsum dolor sit amet, sapien platea morbi dolor lacus nunc, nunc ullamcorper. Felis aliquet egestas vitae, nibh ante quis quis dolor sed mauris. Erat lectus sem ut lobortis, adipiscing ligula eleifend, sodales fringilla mattis dui nullam. Ac massa aliquet.

Production with own tools and finishing in-house *
Lorem ipsum dolor sit amet, sapien platea morbi dolor lacus nunc, nunc ullamcorper. Felis aliquet egestas vitae, nibh ante quis quis dolor sed mauris. Erat lectus sem ut lobortis, adipiscing ligula eleifend, sodales fringilla mattis dui nullam. Ac massa aliquet.

Highest quality
Lorem ipsum dolor sit amet, sapien platea morbi dolor lacus nunc, nunc ullamcorper. Felis aliquet egestas vitae, nibh ante quis quis dolor sed mauris. Erat lectus sem ut lobortis, adipiscing ligula eleifend, sodales fringilla mattis dui nullam. Ac massa aliquet.

Personal consulting
Lorem ipsum dolor sit amet, sapien platea morbi dolor lacus nunc, nunc ullamcorper. Felis aliquet egestas vitae, nibh ante quis quis dolor sed mauris. Erat lectus sem ut lobortis, adipiscing ligula eleifend, sodales fringilla mattis dui nullam. Ac massa aliquet.

* all products with galvanic surfaces, otherwise with long-term partners.

Maximum profile length*

6.000 mm (cutting to length on request)

Material

AlMgSi0,5 F22

*) Due to the manufacturing process, there may be slight deviations from the maximum length of 6,000 mm.

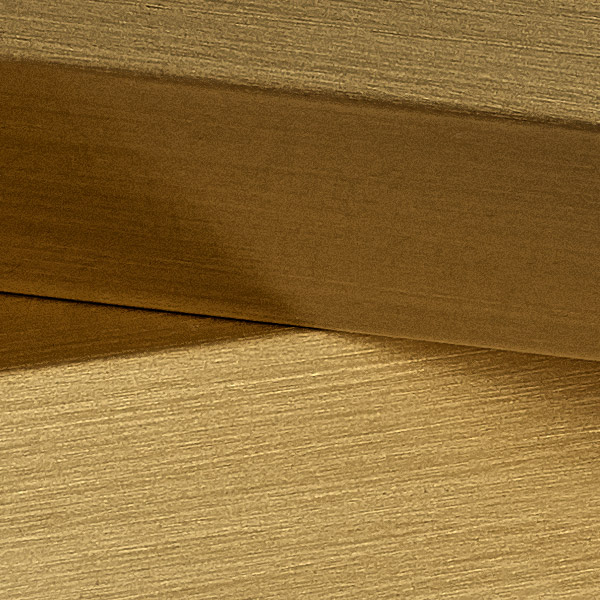

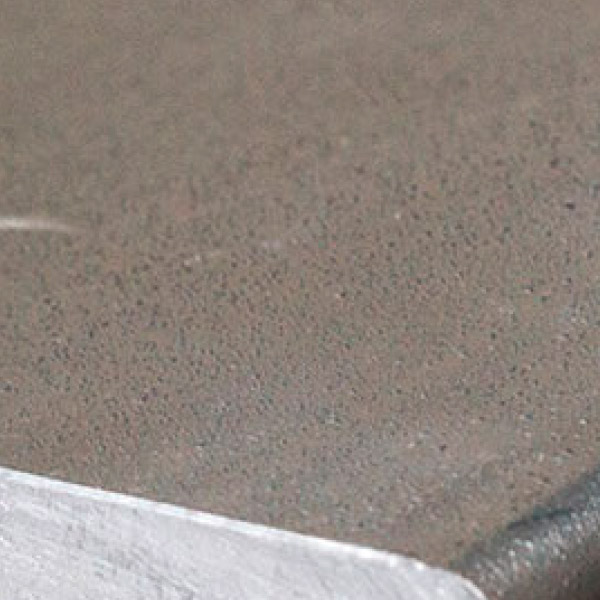

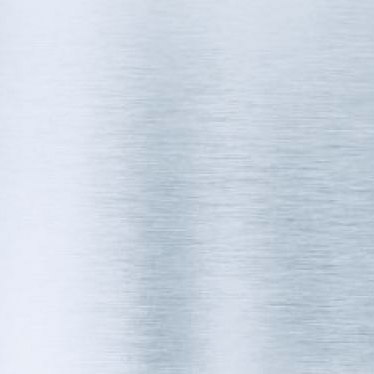

Available surfaces**

Copper ***

up to 2 meters

Brass ***

up to 1 meters

Nickel ***

up to 6 meters

Tin

up to 6 meters

up to 1 meters

up to 6 meters

on chromium VI and III basis

up to 2 meters

on chrome III basis

WICROM Black

Anodized

up to 6 meters

on request

WICROM Black

Other colors

up to 6 meters

on request

**) Other surfaces on request. Due to production conditions, it is possible that there is no surface coating on the contact surfaces at the ends of the profiles (up to 80 mm).

***) These surfaces must be protected from tarnishing by clear varnish if necessary.

Available dimensions

Stacks Image 639
Dimension
(h * b * S in mm)
Weight kg/m
10 x 10 x 2 0,099 kg
12 x 12 x 2 0,130 kg
15 x 15 x 2 0,154 kg
15 x 15 x 3 0,223 kg
20 x 20 x 1,5 0,159 kg
20 x 20 x 2 0,209 kg
20 x 20 x 3 0,305 kg
25 x 25 x 2 0,264 kg
25 x 25 x 3 0,388 kg
25 x 25 x 4 kg
30 x 30 x 2 0,319 kg
30 x 30 x 3 0,470 kg
35 x 35 x 3 0,553 kg
40 x 40 x 2 0,429 kg
50 x 50 x 4 1,056 kg
